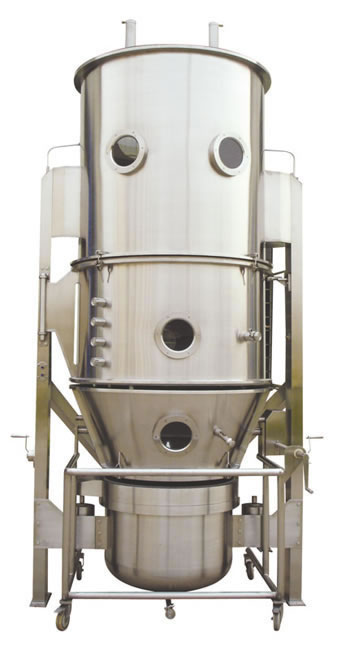

Fluidized Bed Granulator

Fluidized Bed Granulator

Applications
Applications in the pharmaceutical industry of the fluidized bed granulator include the production of medicinal granules, capsule granules, and low sugar or no sugar granules of Chinese medicine.
Foodstuff usages include the production of cocoa, coffee-mate, instant tea, juice dissolving granules, flavoring and so on. The fluidized bed granulator is used in many industries, such as agrochemical, pesticide, animal feed, chemicals, pigment, dyestuff and more. This machine also functions to dry powdered or granular materials.

Features of Fluidized Bed Granulator
1.With powder granulating, the flow property of materials is improved, and dust flying is reduced.
2. Using a fluidized bed granulator for powder granulating helps improve the dissolvability of the product.
3. Mixing, granulating and drying are achieved in one machine with one step.
4. It uses an anti-static filtering cloth to ensure safe operation.
5. The fluidized bed granulator is equipped with an explosion-release port, in order to avoid any injury to operation personnel in case of explosion.
6. The structure of the machine is airtight. This prevents any dead angle, makes it easy to clean, and ensures no cross contamination of products, so they can meet the GMP standard.

Main Technical Parameters of the Fluidized Bed Granulator
Item unit Model
3 5 15 30 60 120 200 300 500
container Volume L 12 22 45 100 220 420 670 1000 1500
Diameter Mm 300 400 550 700 1000 1200 1400 1600 1800
Capacity Min Kg 1.5 4 10 15 30 80 100 150 250
Max Kg 4.5 6 20 45 90 160 300 450 750
Fan Capacity m3/h 1000 1200 1400 1800 3000 4500 6000 7000 8000
Pressure mmH2O 375 375 480 480 950 950 950 950 950
power kW 3 4 5.5 7.5 11 18.5 22 30 45
Steam consumption Kg/h 9 kW 12 42 70 141 180 282 366 451
Compressed air consumption m3/min 0.3 0.35 0.6 0.6 0.9 0.9 1.1 2.0 2.4
Weight of main body Kg 500 700 900 1000 1100 1300 1500 1800 2000
Steam pressure Mpa 0.3-0.6
Temperature Adjustable at the range from room temperature to 120℃
Working time min Decided in accordance with the properties of raw material
Field % ≥ 99
Noise dB(A) When installation, main machine is separated from fan, noise ≤ 75dB

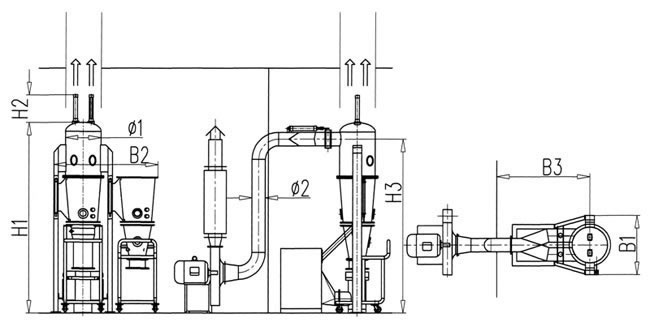

Size(LxWxH) m 1.0x0.6x2.1 1.2x0.7x2.1 1.25x0.9x2.5 1.6x1.1x2.5 1.85x1.4x3 2.2x1.65x3.3 2.34x1.7x3.8 2.8x2.0x4.0 3x2.25x4.4

Typical customer
Singapore Super Coffee mix Manufacturing Ltd
The Coca Cola Company (Shanghai Branch)
USA Granulation Technology, Inc.
Vietnam Minhduong Food Co., Ltd
Korea Grpo Ltd

Xianfeng Drying is a specialized fluidized bed granulator manufacturer in China. We offer a fluid bed granulator, flash evaporation drying machine, circle vibrate sieve, 3-dimensional motion mixer, and more.
