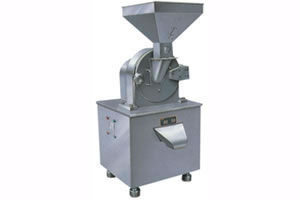

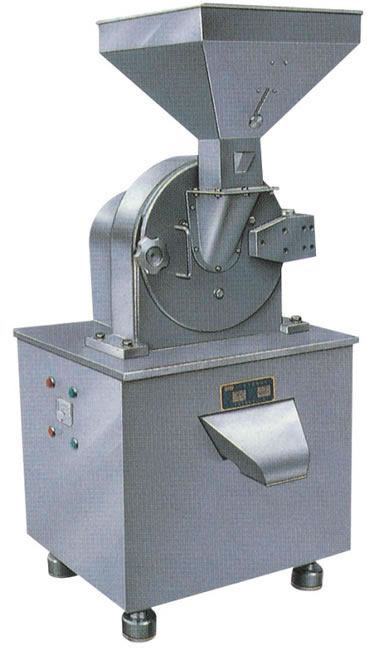

Main Applications and Features of the Universal Grinding Machine
The universal grinding machine has a wide application in the pharmaceutical, chemical, agrochemical and foodstuff industries.

The grinding equipment can grind materials into powders by taking advantage of the impact force between the movable tooth disc and fixed tooth disc, and the shearing force and friction force between materials.

The grinding machine is characterized by simple structure, reliable operation, and high crushing efficiency. The crushed material produced can be discharged directly from the grinding chamber. Moreover, different sizes of raw material can be achieved by changing the screen with different mesh.


Technical Parameter of Grinding Machine
Model 20B 30B 40B 60B
Capacity (kg/h) 60-150 100-300 160-800 500-1500
Rotate speed of shaft (r/min) 4500 3800 3400 2800
Size of feed material (mm) 6 10 12 15
Grinded size (mesh) 60-120 60-120 60-120 60-120
Motor power (kW) 4 5.5 11 15
Weight (kg) 250 320 550 680
Overall dimension L*W*H (mm) 550*600*1250 650*800*1400 800*900*1550 1000*900*1680

Xianfeng Drying is an experienced universal grinding machine manufacturer based in China. We also provide our highly effective grinding machine, fluidizing drying equipment, circle vibrate sieve, two dimensional mixer, and more.
